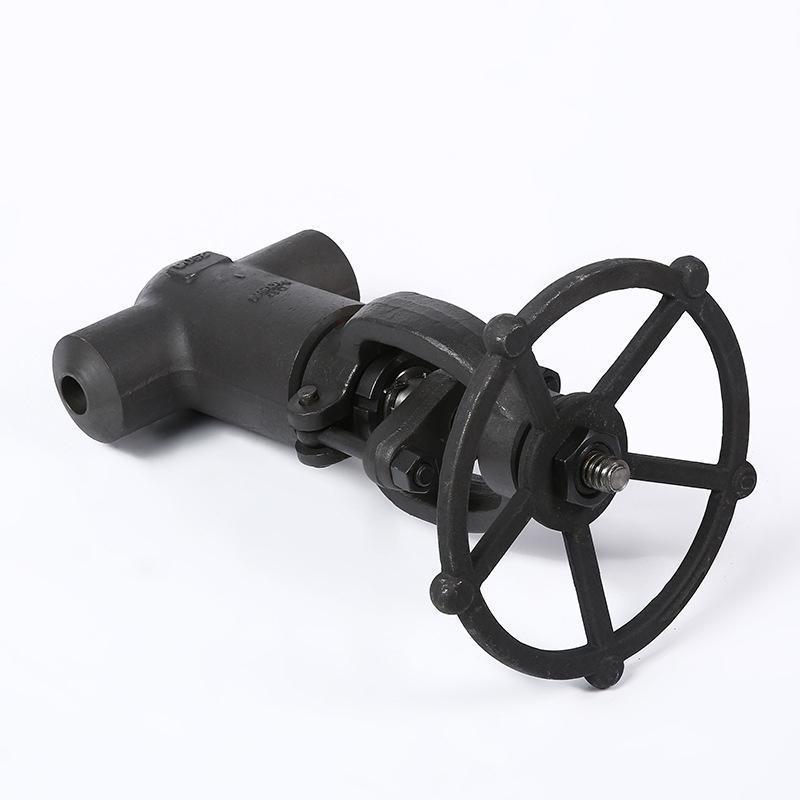

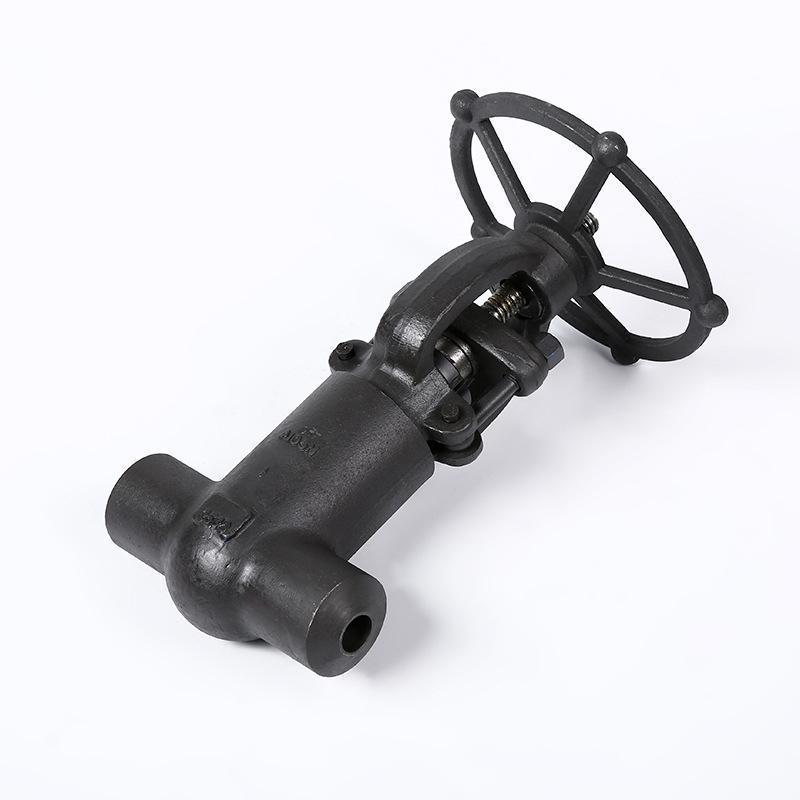

Self-sealing forged steel gate valve (pressure self-tightening bonnet) bonnet design, the first is a bolt-type bonnet, which is connected by concave and convex surfaces, using stainless steel belts and flexible graphite spiral wound gaskets, and ring connections can also be used as required. The second type is a welded bonnet, which is sealed by threads and then welded. Rigid welding can also be used directly as required. The third is a self-sealing bonnet, which is connected to the self-sealing bonnet through threads.
Self-sealing forged steel gate valve class 900Lb～2500lb, working temperature -29～425℃ (carbon steel) or -29～500℃ (stainless steel) on small-diameter pipelines, used to cut off or connect the medium in the pipeline, different selection The material can be applied to various media such as water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, etc.
Size (MM) and weight (KG)
| NPS | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | |
| L | 900Lb-150Lb | 140 | 140 | 140 | 178 | 178 | 216 |
| 2500Lb | 186 | 186 | 186 | 232 | 232 | 279 | |
| H(Open) | 321 | 321 | 321 | 380 | 414 | 502 | |
| W | 160 | 160 | 180 | 200 | 250 | 280 | |
| Weight | 900LB-1500LB | 11.5 | 10.8 | 10.5 | 19.6 | 21.0 | 55.4 |
| 2500LB | 12.3 | 11.6 | 10.8 | 26.0 | 28.4 | 60.0 | |
Stable Operation / Thick Valve Body / Reliable Quality
Low noise and stable
Energy-saving energy
Running smoothly
Not easy to rust
Low failure rate
Machinery Seal
Ingenuity Craftsmanship, Excellent Quality, Years Of Experience
Not easy to burst, good sealing, not easy to leak
Nearly 20 years of experience in the valve industry, reliable quality
Smooth and beautiful surface, stable structure
Strong connection, not easy to loosen
